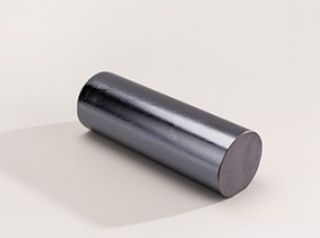

ZGP Zinc germanium phosphate

ZGP Zinc germanium phosphate crystal is an efficient mid-infrared nonlinear optical crystal material with a light transmittance range of 0.76~12.0 µ m, which can be applied to the optical parametric amplifier (OPA), optical parametric oscillator (OPO), two-wave coupling (SHG), four-wave coupling (FHG) and other mid-infrared bands.

The nonlinear sensitivity of ZGP crystal is about 160 times that of KDP (d36-75 pm/V). ZGP has good optical transparency in the range of 740-12000 nm and high laser damage threshold, making it very suitable for generating near-infrared tunable lasers.

立即咨询下一个产品下载

Product Description

Main Features

Larger nonlinear coefficient

Higher threshold for laser damage

Higher thermal conductivity

Stable mechanical properties

Wider phase-matching range

Material Properties

Crystal structure	tetragonal system
Cell parameters	a=b=54.76nm ，c=107.31nm
Melting point	1027℃
Density	4.18g/cm3
Microhardness	980 ± 80 kg/mm2
Moh's hardness	5.5
Energy gap	2.34/2.08 eV
Semiconductor type	P
Heat conductivity	180 mW/(cm · K)
Penetration range	0.76 to 12.0μm
Nonlinear coefficient	d36=75 ± 8 pm/V

Product Parameters

Crystal size	6mm x 6mm x 15mm; 6mm x 8mm x 20mm; customizable
Phase matching type	Class I or Class II matches
Directional deviation	≤0.5
Absorbance index	≤0.05cm-1@ 2μm
Flatness	≤λ/6 @632.8nm
Parallelism	≤10"
Verticality	≤5′
Finish	20-10(MIL-O-13830A)
