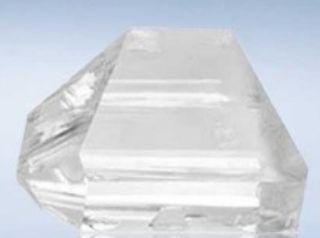

RTP Rubidium Titanium oxide Phosphate crystal is an excellent nonlinear optical crystal, an isomer of potassium titanium phosphate (KTP), with a large nonlinear optical coefficient, and a wide range of near-mid-infrared light transmittance. Due to its excellent characteristics such as high resistivity, low piezoelectric effect, high laser damage resistance threshold and non-easy tidal solution, it is widely used in photoelectric technology fields such as electro-optical modulation and laser Q switching.
Using 1.0 μ M-band laser pumped non critical phase matching cut RTP nonlinear crystals and their isomorphs can achieve efficient 1.5-1.6 μm band eye safe laser, has important applications in the field of nonlinear optical frequency conversion.
Product Description
RTP Rubidium Titanium oxide Phosphate crystal is an excellent nonlinear optical crystal, an isomer of potassium titanium phosphate (KTP), with a large nonlinear optical coefficient, and a wide range of near-mid-infrared light transmittance. Due to its excellent characteristics such as high resistivity, low piezoelectric effect, high laser damage resistance threshold and non-easy tidal solution, it is widely used in photoelectric technology fields such as electro-optical modulation and laser Q switching.
Using 1.0 μ M-band laser pumped non critical phase matching cut RTP nonlinear crystals and their isomorphs can achieve efficient 1.5-1.6 μm band eye safe laser, has important applications in the field of nonlinear optical frequency conversion.
Main Features
Non deliquescence
Small size
high resistivity
High extinction ratio
No piezoelectric effect
Wide transparency range
High damage threshold
high temperature stability
Low half wave voltage
Suitable for high-frequency operation
Stable mechanical and chemical properties
Large nonlinear optical and electro-optical coefficients
Product Parameters
Direction of growth | Along the Y axis |
Maximum length (5x5mm aperture) | 25mm |
Length tolerances (mm) | +0.5/-0.1 |
Width and height Tolerances (mm) | ±0.1 |
Parallelism | ＜30″ |
Verticality | ＜15′ |
Finish | 20/10 |
Coating film | reflection reducing coating |
Material Properties
Crystal structure | rhombic system |
Cell parameters | a = 12.96 Å，b =10.56 Å， c =6.49 Å |
Mohs hardness | About 5 |
Density (g/cm3) | 3.6 |
Melting point | About 1000℃ |
Coefficient of thermal expansion (/ K) | αx=1.01x10-5, αy=1.37x10-5 αz=-4.17x10-6 |
Sellmeier Equation (λ in μm) | nx2=2.15559 + 0.93307[1-(0.20994/λ)2] - 0.01452λ2 ny2=2.38494 + 0.73603[1-(0.23891/λ)2] - 0.01583 λ2 nz2=2.27723 + 1.11030[1-(0.23454/λ)2] - 0.01995λ2 |
Thermal-light coefficient (d λ / dT) | -0.029 nm /℃ |
Electro-optical constant (Y-cut) (X correspond to) | r33=38.5 pm/V r33=35 pm/V, r23=12.5 pm/V, r13=10.6 pm/V |
Resistivity | About 1011-1012ohm·cm |
1064 nm static half-wavelength operating voltage | 4x4x20 mm: 1,600 V 6x6x20 mm: 2,400 V 9x9x20 mm: 3,600 V |
Extinction ratio | ＞20dB@633nm |
