Product Description

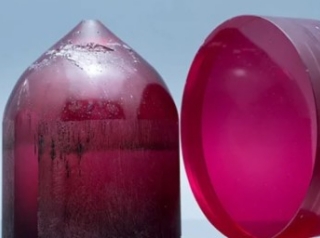

Titanium-doped sapphire (Ti:Al 2 O 3 ) laser crystal is the core material for femtosecond ultrashort pulse laser and petawatt-level high-power laser technology. The crystal has tunable wavelength (660-1200nm) and wide emission bandwidth ( About 600nm), large emission cross-section, high thermal conductivity, excellent physical and chemical properties, etc., is currently the most widely used tunable laser crystal and the most important working medium for ultra-fast, ultra-intense and high-power
Main Features
Broad wavelength tunability
Broad absorption pump band
Excellent output efficiency
Short excited state lifetime (3.2 mm)
Narrow clamp width
high damage threshold
Excellent thermal conductivity
Material Properties
Doping concentration | 0.0 6 -0.5 wt% |
Absorption range/absorption peak position | 400-600nm / 488nm |
Absorption coefficient ( @ 490nm) | 1.0-7.5cm -1 |
FOM value | 100~300 |
Tuning Range/Emission Peak | 660-1050nm / 795nm |
Refractive index | 1.76 @ 800nm |
Fluorescence lifetime | 3.2μs (T = 300K) |
Crystal structure and unit cell parameters | Hexagonal, a=4.748 Å , c=12.957 Å |
Thermal conductivity | 0.105cal/cm/sec/℃ |
Mohs hardness | 9 Mohs |
Density | 3.98 g/ cm3 |
Product Parameters
Diameter size | 3 ~ 220mm _ |
Length | 1~80mm |
Cutting method | Flat, Brewster's corner or customized |
Orientation | [0001] |
Wavefront distortion | ＜λ/4@632nm |
Flatness | ＜λ/8@632nm |
Clear aperture | >90% |
Parallelism | <10" |
Surface quality | 10/5 |
Coating | According to customer requirements |
